Seamless Media Migration to XM Cloud: A Step-by-Step Guide from Sitecore XP 10.4 and Content Hub Integration

This article covers how to migrate the media library content from Sitecore XP to Sitecore Content Hub.

In the previous article, we have seen how to connect Sitecore XP with Sitecore Content Hub for accessing the assets from DAM.

Steps to migrate the content from Sitecore XP:

Create an Excel file import with all the media library items with the required fields that need to be imported in Sitecore Content Hub as Assets
Fields to be added in the Excel sheet for the Asset creation in Sitecore Content Hub are provided below.

ItemName
SitecoreItemId (SitecoreItemIdentifier)
Alt (Title)
FinalLifeCycleStatusToAsset (Approved)
ContentRepositoryToAsset (Standard)
LocationToAsset (For multilingual Content)

We will create a PowerShell script that will loop through the media library and create an Excel sheet. Once the Excel is created, we will import the content to Sitecore Content Hub.

#Domain url to public else Content Hub will not be able to access the images from Excel.
$donainNameUrl = 'https://publicsitedomain/'

#Set the assest to Approved status to see the assets in the Approved Assest tab for adding in sitecore
$lifeCycleStatus = 'M.Final.LifeCycle.Status.Approved'
$ContentRepository = 'M.Content.Repository.Standard'
$Localization = 'M.Localization.'
$mediaItems = @()
#get all the media library items
$allMediaItems = Get-ChildItem -Path 'master:/sitecore/media library' -Recurse |
Where-Object { $_.TemplateName -ne "Media folder" }

if ($allMediaItems -ne $null) {
    $allMediaItems | ForEach-Object {
        $item = $_
        #looping through all the language version, incase version created for media items
        $_.Languages | ForEach-Object {

            $languageBasedMediaItem = Get-Item -Path "master" -ID $item.ID -Language $_.Name
            if ($languageBasedMediaItem -ne $null) {
                #we need to point the public domain name from where we can access the images ($donainNameUrl),
                #as Content Hub needs to access the public URL and do import the images as assets.
                #if we use localhost site url/-/media/abc.jpg , this url will not be accessible by the
                #Content hub while doing excel import.
                $url = [Sitecore.Resources.Media.MediaManager]::GetMediaUrl($languageBasedMediaItem) -replace '/sitecore/shell/', $donainNameUrl

                #Get the file extension from the media item
                $extension = $languageBasedMediaItem["Extension"]
                $itemName = $languageBasedMediaItem.Name

                #Get the item Name
                if ($itemName.EndsWith(" " + $extension)) {
                    $itemName = $itemName.Substring(0, $itemName.Length - $extension.Length - 1)
                }

                #Get Alt text in case of image, if other files types then this alt will be empty
                #in that case have use title or itemname
                $title = $languageBasedMediaItem["Alt"]
                if ($title -eq '' -or $title -eq $null) {
                    $title = $itemName -replace '-', ' '
                }
                if ($title.EndsWith(" " + $extension)) {
                    $title = $title.Substring(0, $title.Length - $extension.Length - 1)
                }

                #get the file extension
                if ($extension -ne '' -and $extension -ne $null) {
                    $fileName = $itemName + "." + $extension
                }
                else {
                    $fileName = $itemName
                }

                #create the object for exporting to csv
                $mediaItemDetails = [pscustomobject]@{

                    SitecoreItemIdentifier      = $languageBasedMediaItem.ID
                    ItemName                    = $itemName
                    FileName                    = $fileName
                    Title                       = $title
                    File                        = $url
                    Updated                     = $languageBasedMediaItem.Updated
                    FinalLifeCycleStatusToAsset = $lifeCycleStatus
                    ContentRepositoryToAsset    = $ContentRepository
                    LocalizationToAsset         = $Localization + $languageBasedMediaItem.Language
                }
                if ($mediaItemDetails -ne $null) {
                    $mediaItems += $mediaItemDetails
                }
            }
        }

    }
    #export the media items to excel file
    $mediaItems |
    Export-Csv -Path "C:\nelson\latest_published_items.xlsx" -NoTypeInformation -Encoding UTF8
    Write-Host "Export completed successfully."
}

The above script will generate the media library item details with image URL in the Excel file, which will now be imported into Content Hub.
Open Excel and update the sheet name from Sheet 1 to M.Asset
But before importing the Excel to Sitecore Content Hub, we need to add the SitecoreItemIdentifier field in the Content Hub for the M.Asset schema.
This field will be useful in the later stages, like finding all the media items referred by Sitecore items in the fields like Image, RTE, and General Link. And update these field images with the public link from the Content hub for that particular SitecoreItemIdentifier.
To add a SitecoreItemIdentifier field in Sitecore Content Hub, go to Manage -- Schema -- M.Asset

Add a New Group named "Sitecore" and click New Member and select PROPERTY, and then select String Type like below.

Create a Public link automatically once assets get approved. This is important as we are going to import a lot of media content from Sitecore XP to Sitecore Content Hub, so it is necessary to have a public link created automatically once the asset's final life cycle status is set to approved, ie, M.Final.LifeCycle.Status.Approved
Steps to create a public link automatically on asset status changes to approved.

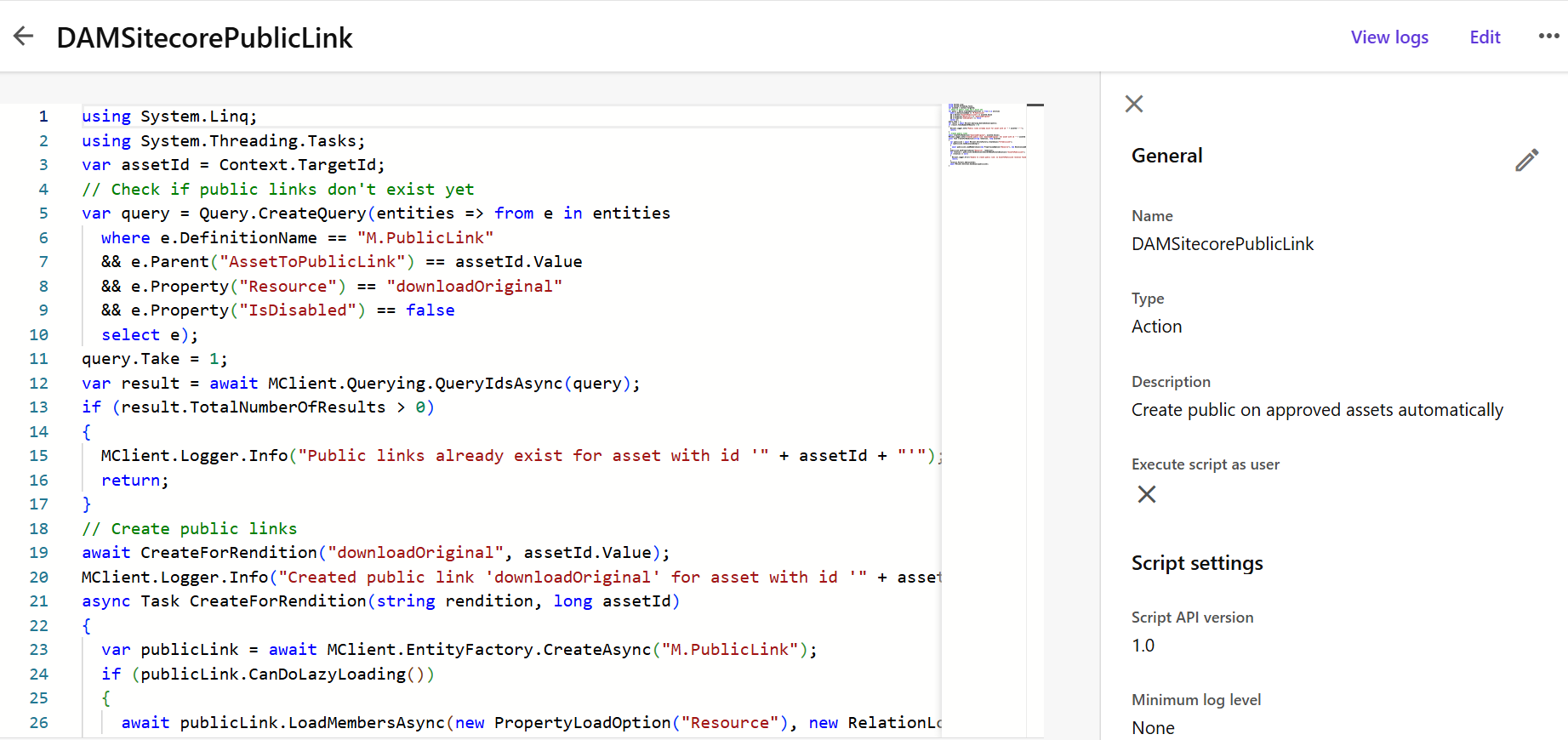

Create a Script

Go to manage and click Script, add the below script, and build and save it.
Once done, enable the Script

using System.Linq;
using System.Threading.Tasks;

var assetId = Context.TargetId;

// Check if public links don't exist yet
var query = Query.CreateQuery(entities => from e in entities
  where e.DefinitionName == "M.PublicLink"
  && e.Parent("AssetToPublicLink") == assetId.Value
  && e.Property("Resource") == "downloadOriginal"
  && e.Property("IsDisabled") == false
  select e);
query.Take = 1;

var result = await MClient.Querying.QueryIdsAsync(query);
if (result.TotalNumberOfResults > 0)
{
  MClient.Logger.Info("Public links already exist for asset with id '" + assetId + "'");
  return;
}

// Create public links
await CreateForRendition("downloadOriginal", assetId.Value);
MClient.Logger.Info("Created public link 'downloadOriginal' for asset with id '" + assetId + "'");

async Task CreateForRendition(string rendition, long assetId)
{
  var publicLink = await MClient.EntityFactory.CreateAsync("M.PublicLink");

  if (publicLink.CanDoLazyLoading())
  {
    await publicLink.LoadMembersAsync(new PropertyLoadOption("Resource"), new RelationLoadOption("AssetToPublicLink"));
  }

  publicLink.SetPropertyValue("Resource", rendition);

  var relation = publicLink.GetRelation<IChildToManyParentsRelation>("AssetToPublicLink");
  if (relation == null)
  {
    MClient.Logger.Error("Unable to create public link: no AssetToPublicLink relation found.");
    return;
  }

  relation.Parents.Add(assetId);

  await MClient.Entities.SaveAsync(publicLink);
}

Create an Action

Once the Script is created, let's create the Action for creating the public links.

Create Trigger

Finally, create the trigger event to create the asset public link.
Create a Trigger with the Objective set to Entity Creation and Entity Modification.
Execution Type to In Progress
Also, update the condition with the M.Asset definition and set the condition for Final Life Cycle Status to Approved
Go to the Action tab and set the post actions to execute the script we have created in "Create a Script" step DAMSitecorePublicLinks

Let's import the Media library Excel exported from Sitecore using PowerShell.
Go to Sitecore Content Hub and click on Create Menu. Once the page loads, click on the Add button. This will provide 2 options from there, select Import Excel.
Upload the Excel sheet; this will take some time to process all the images into Sitecore Content Hub. Once it is done, we can see all our media items created and will be available in the Assets menu. And also, the public link would be created for every asset uploaded from Excel.
